Homepage > Product & Service > Factories & Warehouses
Product
Ready-Built F&W (RDB)
At Nam Binh Xuyen Green Park Industrial Park, CNCIndustrial provides pre-built factories with scales from 1 to 5 floors, flexible areas from 2,000 to 30,000 m². The factories are designed in a modern, international standard, meeting the requirements of multi-industry production. The synchronous infrastructure system and convenient location help businesses easily operate and expand.
This is an ideal choice for investors who need production space ready for immediate exploitation.
Overview
| Total area | 115,205 m2 (Phase 1) |
| Floor load | 2 tons/m2 (ground floor) |
| Delivery time | 2025 – 2027 |
| Number of floors | 1-5 tầng |
Product
Built-to-suit F&W (BTS)
We design and construct according to the actual operating needs of each business, optimizing production space and investment costs. Customers are fully supported from legal procedures to operational handover.
This is an ideal solution for businesses that need specialized production space, saving implementation time.
Overview
| Delivery time | 2025 – 2027 |
| Number of floors | 1-5 floors |
Detail
Specifications
| Number of floors/td> | 03 floors |
| Standard height | 5 – 14m |
| Standard area | 3.300 – 5.300 m² |
| Ventilation windows | Available |
| Lighting system | Installed by customer |
| Large rolling door | Available |
| Roof | Insulated corrugated iron |
| Concrete floor | Polished, load capacity 2 tons/m² (ground floor) |
| Mezzanine floor load | 0.5 tons/m² (office) |
| Upstairs floor load | 1.0 – 1.5 tons/m² |
| Electric power | 0.75MVA/ha (Power supply capacity can be increased according to customer needs) |
| Awning width | 2 – 6m |
Planning Area

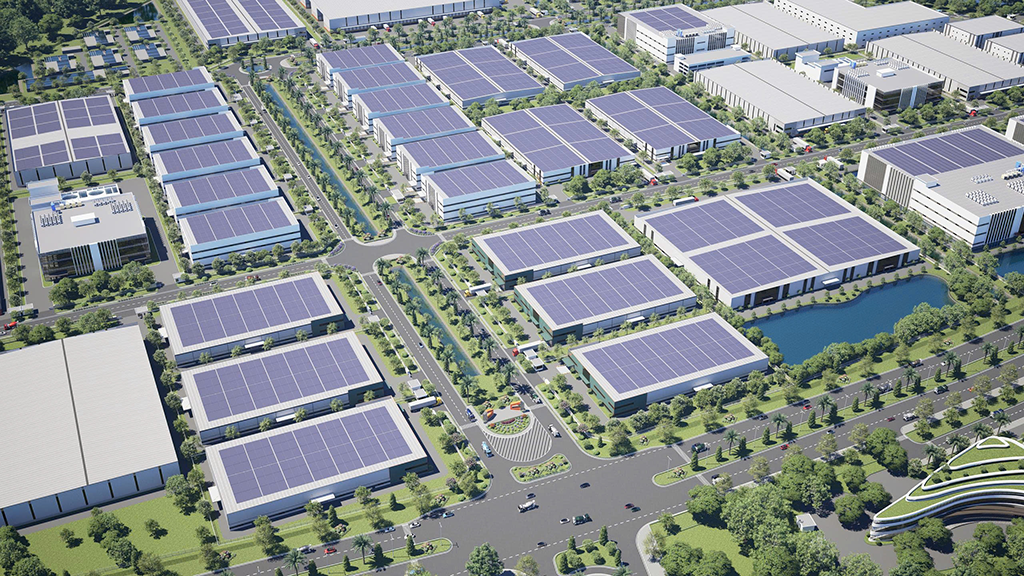

Planning area of Factories & Warehouses
Media

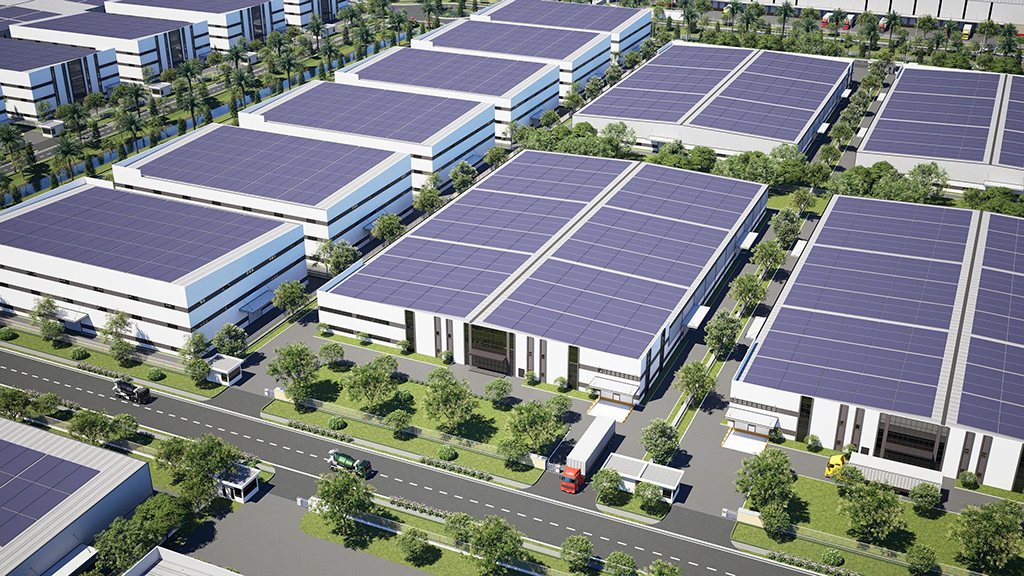

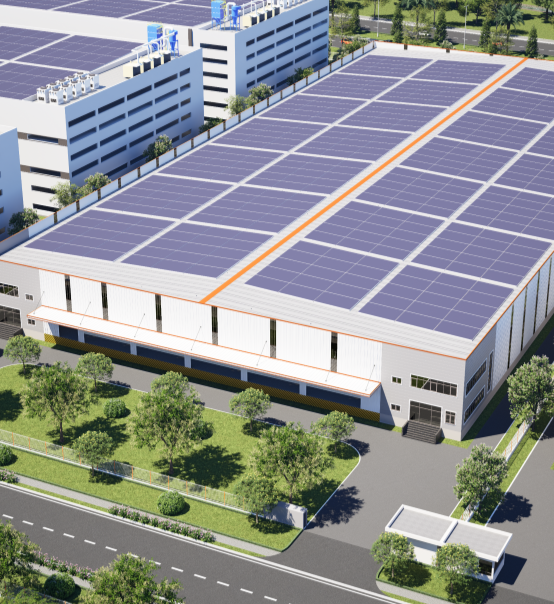

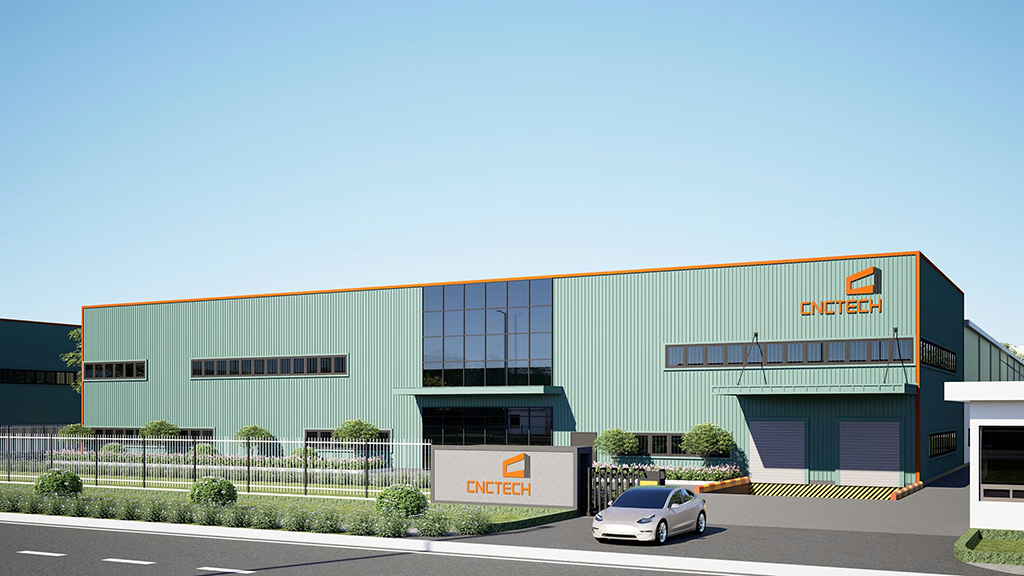

Actual view of the project
Infrastructure
Green & Smart Infrustructure
Internal Transportation
- Main roads: 62–70 meters wide with 6 lanes.
- Branch roads: 23–28 meters wide with 2 lanes.
Water Supply System
- Delivers 10,000 m3/day, with capacity expansion available upon demand.
- Water tank capacity: 7,500 m3, minimum water pressure at the land lot connection point: 10m.

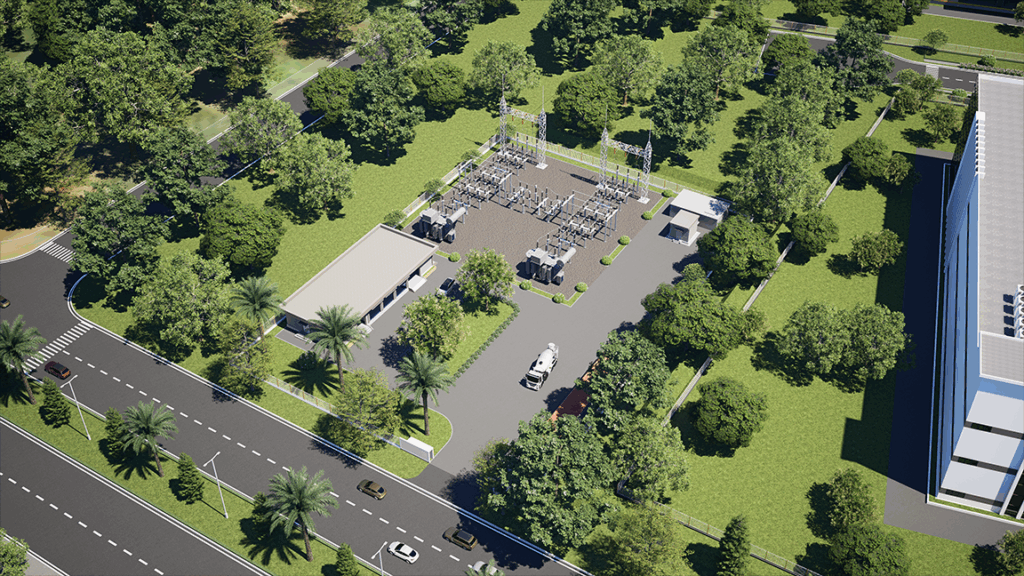

Power System
- National power is supplied from two 110kV sources through the 110/22kV Nam Binh Xuyen substation.
- Power capacity: 4×63MVA, expandable. Underground power distribution in a ring circuit config- uration with RMU (Ring Main Unit) systems installed at the factory fence line.
- Expected Rooftop solar panels capacity: 102MVA.

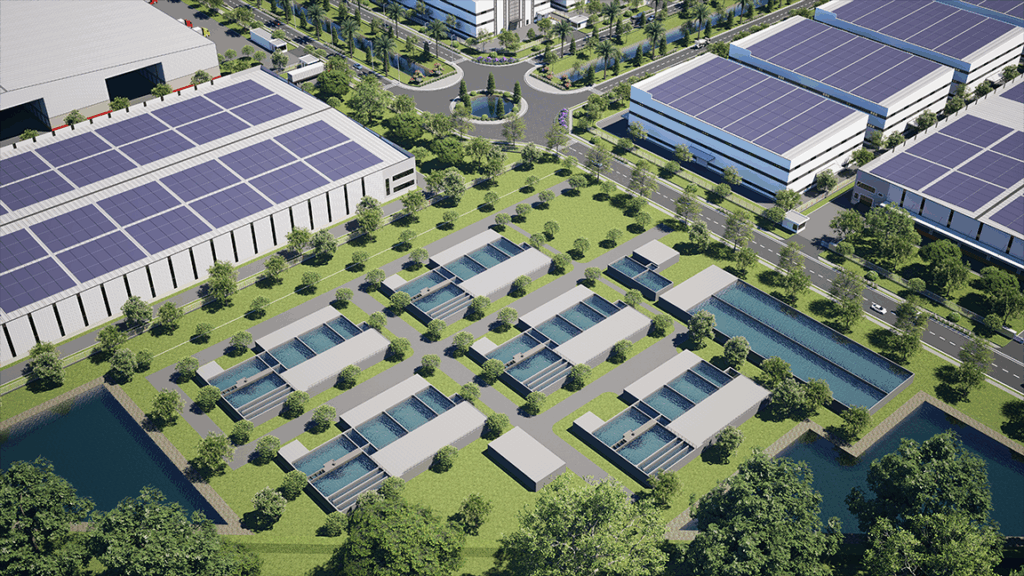

Wastewater Treatment
- The green wastewater treat- ment system has a processing capacity of 6,000 m3 per day and night, with reserved land planned to allow for future expansion up to a total treat- ment capacity of 20,000 m3 per day and night.
Standard FF&FP System
- Operates 24/7.
- Ensures safety and minimizes fire and explosion risks.
Eco-friendly Infrastructure
- Green area: 35 ha
- Canal & landscape lake area: 5.5 ha
